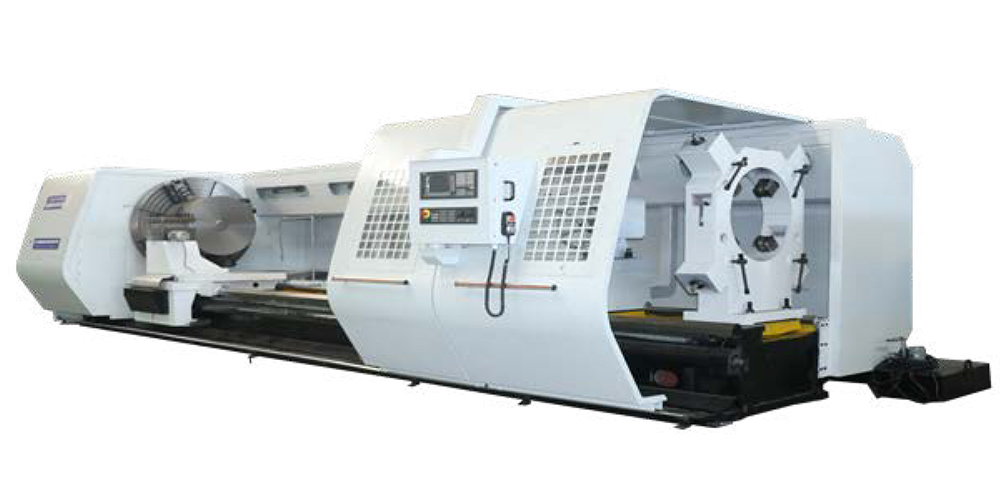

CK611-H Series CNC Large Horizontal Lathe

Inquire

Features:

CK611-H series machine is a large horizontal flat bed lathe. The main drive of turning is hydraulic four gear, stepless speed regulation within the gear, and two linkage control shafts. The x-axis adopts ball screw pair and AC servo motor to realize horizontal movement, the z-axis adopts ball screw transmission for 1-5m, and the inclined rack and AC servo motor for vertical movement for more than 6m. The machine bed is of Flat-V structure, cast with high-strength resin sand, and the bed surface is subject to medium frequency quenching treatment. The hardness is HRC50, and the quenching depth is deep.

The machine body has strong rigidity, large bearing capacity and good stability. The carriage is pasted with plastic. Since the material contains lubricating elements, the difference between the dynamic and static friction coefficients is small, which greatly reduces the friction between the carriage and the guide rail surface of the bed and prevents creeping. The machine bed is cast with an arched door for backward chip removal, and the chips are directly discharged to the chip receiving tray, which is convenient for chip removal and cleaning.

Notice: boring, milling, grinding, drilling functions are optional.

Special Ordered Parts

Item Machine model
CK61125HCK61140H CK61160H CK61180HCK61200H
CNC turning and boring function Parts Optional; After adding this functional part, deep hole boring machine processing and deep hole turning processing can be realized.
CNC turning and milling function Parts Optional; After adding this functional part, drilling and simple milling can be realized.
CNC turning and grinding function Parts Optional; After adding this functional part, the abrasive belt grinding of the outer circle can be realized.
Chuck Standard Φ1250mm Φ1400mm Φ1600mm
Special ordered Parts Φ1400 Φ1600 Φ1800mm
Center Frame Standard Φ70-480mmΦ400-700mm
Special ordered Parts Φ400-700mmΦ120-480mm
Turret Standard LDB4-C61125
Special ordered Parts Optional according to user requirements
Roller Standard No, special order is available
Max. loading capacity of two centers 16T
Machine bed width 1100mm
Max.swing diameter over bed 1290mm 1440mm 1640mm1840mm 2040mm
Max.swing diameter over turret 900mm 1050mm 1250mm1450mm 1650mm
Max.workpiece Length 1000-16000mm
Headstock Parameters
Spindle front bearing diameter 240mm 240mm
Spindle bore diameter 130mm
Spindle taper Metric 140#
Spindle speed series Hydraulic four gear, stepless speed regulation within gear
Spindle rotary speed range 5-500r/Min
Main motor power 45kW
Infeed system parameters
SIEMENS CNC control system
Longitudinal servo motor torque 30N.M
Transverse servo motor torque 28N.M
FANUC CNC system
Longitudinal servo motor torque 30N.M
Transverse servo motor torque 22N.M
Cutter bar cross section 40×40
Turret workstation quantity Vertical type 4 station
Cutter disc repeated positioning accuracy 0.01mm
Longitudinal rapid feed rate 4000mm/min
Transverse rapid feed rate 4000mm/min
Longitudinal feed speed 1-2000mm/min
Transverse Infeed speed 1-2000mm/min
Tailstock parameters
Tailstock sleeve diameter (Mandrel rotation) 260mm
Tailstock sleeve taper Morse 80#
Tailstock sleeve stroke 300mm
